RBD/4 Bollard
(Reinforced – Fixed Model)
Technical Features
Crash / Impact Rating :
Crash tested and certified according to ASTM F2656-15 at M50 (K-12) level (HBD 275 S 100) also designed and produced to withstand impacts mentioned below:
| Standard | Vehicle Type | Weight | Speed |
|---|---|---|---|
| ASTM F2656 | M, C7 (K-4) | 6800, 7200 kg | 48 km/h (30 mph) |
| PAS 68 | N2, N3 | 7500 kg | 48 km/h (30 mph) |
| IWA 14-1 | N2A, N2B, N3C | 7200 kg | 48 km/h (30 mph) |
(Please contact for applicable product dimensions.)

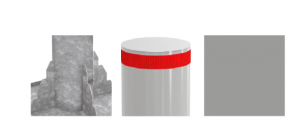

Bollard Structure:
Ø273 mm (Ø278 mm with sleeve), 10 mm thick hot dip galvanised solid steel pipe, electrostatic powder coated in RAL9006 (optionally in other RAL colors) impact surface and 10 mm thick impact absorbing panel reinforced interior.
Furnished with red (opt. white or yellow) reflecting strips.
Includes 4 adjustment bolts for easy leveling, with an anchor plate of 692×692 mm welded to the impact pipe and 4 vertical anchor supports welded around the impact pipe.
Designed so that no vehicle crashing effect can displace it after embedded into the ground.
Optional Features and Accessories :
Removable structue (designed and produced to withstand impacts at ASTM F2656 M30 (K-4), PAS 68 [N2/N3]/48 and IWA 14-1 [N2A/N2B/N3C]/48 levels), demountable aluminium (electrostatic powder coated in body color or 304/316 grade stainless steel) bollard top lid with 360° visible red flashing LED indicators, stainless steel sleeve (304/316 grade), different colors, different product dimensions.
Installation:
Easy levelling with 4 bolts and installation with C30 grade concrete and steel rebar reinforcement. Ground levelling and preparation works shall be carried on before pouring the concrete. Allowable bearing value of the ground shall be minimum 1/2 kg/cm2, if not, works shall be carried on to fulfil. Installation shall be done according to the manufacturer’s instructions.
