HBD K12 SHLW Bollards



Technical Feature

Crash / Impact Rating Designed and produced to withstand impacts mentioned below:

Standard Vehicle                         Type                                         Weight                            Speed
ASTM F2656                         M, C7 (K-12)                          6800, 7200 kg              80 km/h (50 mph)
PAS 68                                            N3                                           7500 kg                   80 km/h (50 mph)
IWA 14-1                                         N3C                                        7200 kg                   80 km/h (50 mph)

(Please contact for applicable product dimensions.)

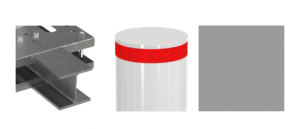

Bollard Structure 950 mm high bollard pipe is made of Ø273 mm (Ø278 mm with sleeve), 10 mm thick hot dip galvanised solid steel pipe with a reinforceddesign.
Special star-formed, 10 mm solid steel bar and composite infilled inner structure for impact absorption distributed evenly to the whole body and increasing resistance.
Impact surface is painted in RAL9006 (optionally in other RAL colors).
Designed so that no vehicle crashing effect can displace it after embedded into the ground.
Furnished with red (opt. white or yellow) reflecting strips.
Bollard contains high resistant anchorage structure through 2 anchor plates with concrete immersion slits at the top and bottom, strengthened with “HEB” beams in the impact direction and adjustment bolts for leveling at 4 areas.
Underground elements are fixed together by wedge type, 10.9 grade bolted and welded connection for utmost resistance reinforcement.
Optional Features and Accessories Removable structue (designed and produced to withstand impacts at ASTM F2656 M50, C750 (K-12), PAS 68 [N3]/80 and IWA 14-1 [N3C]/80 levels), demountable aluminium (electrostatic powder coated in body color or 304/316 grade stainless steel) bollard top lid with 360° visible red flashing LED indicators, stainless steel sleeve (304/316 grade), different colors, different product dimensions.


Installation Easy levelling with 4 bolts and installation to 500 mm shallow depth with steel rebar reinforcement and C35 grade concrete through ground mounting plate containing concrete immersion slits. Ground levelling and preparation works shall be carried on before pouring the concrete.
Allowable bearing value of the ground shall be minimum 1/2 kg/cm2, if not, works shall be carried on to fulfil. Installation shall be done according to the manufacturer’s instructions. Minimum 2 bollard posts shall be installed for above mentioned crash/impact rating compliance.
