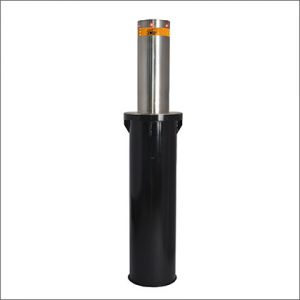

Hydraulic Automatic Bollards
The HA102-600 hydraulic automatic retractable traffic bollard is a high-quality hydraulic security bollard which is particularly suitable for
the intelligent and automatic control of traffic within residential areas. It is an ideal solution for entrance with high security requirements.
The solid body can stop the vehicle with high tonnage and high speed easily. Meanwhile, it has the advantage of invisibility and
aesthetics.Normally, the bollard system will be integrated into entrances and exits of commercial premises and car parks as well as of leisure
and sports centers with a middle security level (M30). Bollards can be operated by remote controller, push button, card reader and other
existing access control system
Except crash tests, HA102 automatic bollard passed continues 5000 lifting test, IP68 water proof and dust proof test, temperature test etc..
series of performance tests.According to different types, equipment lifting time could range from 3 until 5 seconds. With emergency release
system, power outage or other emergencies, can be artificially lower, release vehicles.
Specifications
● Dimension: φ400×1150mm
● Bollard diameter: 217±1mm, customized 271mm diameter
● Bollard thickness: 10±1mm
● Height above ground: 600mm, customized 700-800-900-1000mm height
● Rising time: 3.8s
● LED light: Yes
● Protection level: IP68
● Working temperature: -40℃ ~ +70℃
● Crash rating: China D1 rating, 1500KG/100KMH, penetration 0.87 meters
● Material: 304 stainless steel, optional 316 stainless steel
● Color: customized
Applications of Hydraulic Automatic Bollards
1. Critical Infrastructure Protection
Hydraulic automatic bollards play a crucial role in protecting critical infrastructure sites, such as government buildings, power plants, and airports. By effectively controlling access, these bollards mitigate potential security threats and ensure the safety of sensitive areas.
2. Commercial and Retail Establishments
Many commercial and retail establishments utilize hydraulic automatic bollards to regulate vehicle access to their premises. These bollards offer an efficient solution for managing parking areas, restricting entry during non-business hours, and ensuring the safety of customers and employees.
3. Residential Communities
Residential communities, gated neighborhoods, and apartment complexes benefit greatly from the installation of hydraulic automatic bollards. These bollards enhance security by allowing only authorized vehicles to enter, thus reducing the risk of unauthorized access or vandalism.
4. Public Spaces and Pedestrian Zones
In urban areas with pedestrian zones or public spaces, hydraulic automatic bollards prove invaluable in controlling vehicle access. By strategically placing bollards, city planners can create safer environments for pedestrians, prevent unauthorized parking, and maintain the overall integrity of the designated zones.

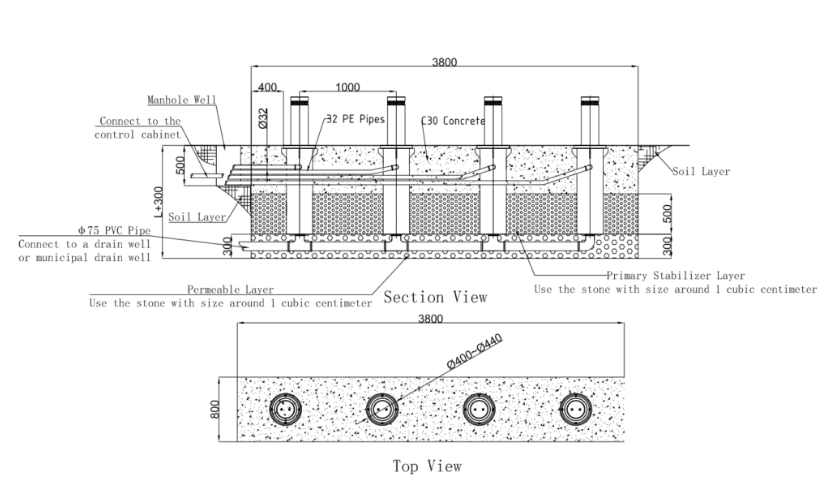

Installation Drawing of Drain Mode

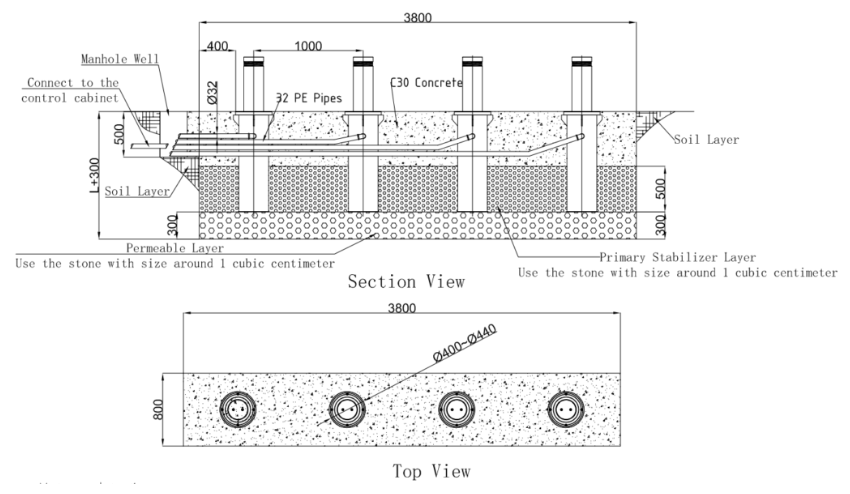

Installation Drawing of Water Seepage Mode

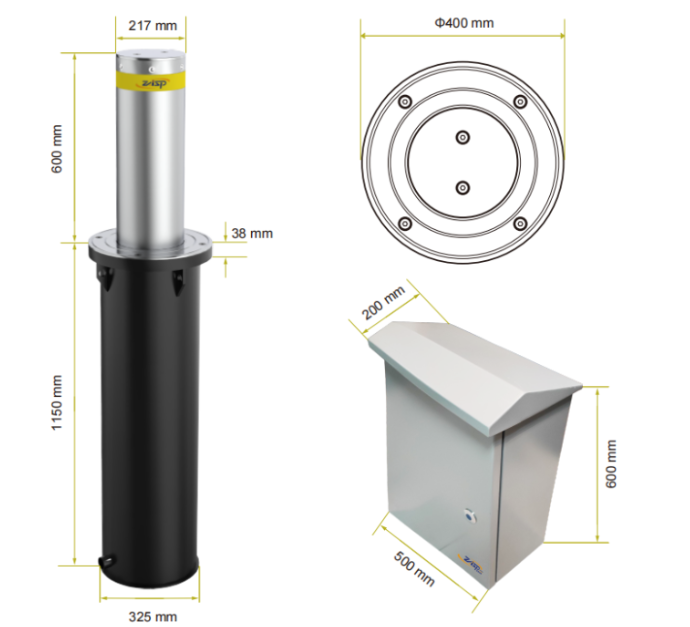

Dimensions
