Ideal solution for applying in private homes and industrial plants
- 24 V DC operator with Advanced Speed Control.
- Tested for intensive use of 160 cycles/hour with MCBF 3 million cycles.
- Cabinet available in galvanized steel and painted RAL7024, AISI 304 and AISI 316 steel, or in customized color.
- Control board with display, CONNECT technology and inputs for CXN BUS accessories.
- Accessories that can be integrated directly into the cabinet.
- High visibility red/green LEDs on the crown and on both sides of the boom.
- It can be integrated with third party systems through MODBUS protocol.
FITTED FOR BALANCING SPRINGS

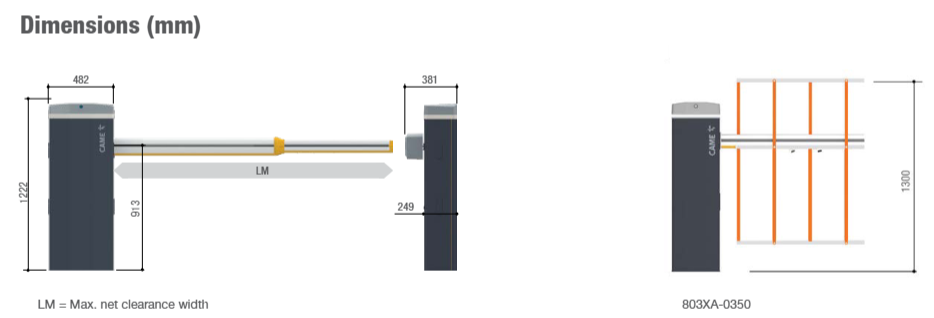

Point A and B are the springs’ fastening points, depending on the clearance width.
The spring attachment points A and B refer to the table above.
LUMINOUS BOOM, MAXIMUM SAFETY
The new GARD GT8 barriers incorporate as an accessory,
the luminous warning device with green or red light,
depending on the position of the boom.
SIMPLE CONFIGURATION
The control board is positioned directly under the cabinet cover.
All the configuration and maintenance phases can therefore be
carried out comfortably standing upright, with the cabinet closed, in complete safety.
FULL-HEIGHT FOLDING SKIRT
Suitable for both residential and industrial use, the folding skirt is the ideal solution
to prevent access by pedestrians or unauthorized vehicles. GARD GT8 can be equipped not only
with a lower skirt, but also with a special full- height solution that can be fully folded to close the gate
to a height of 130 cm. This accessory is made of aluminum with white/red painted strips.
